Pie Widget

Using data from multiple variables, the Pie widget automatically produces a pie chart where each slice represents a variable's data.

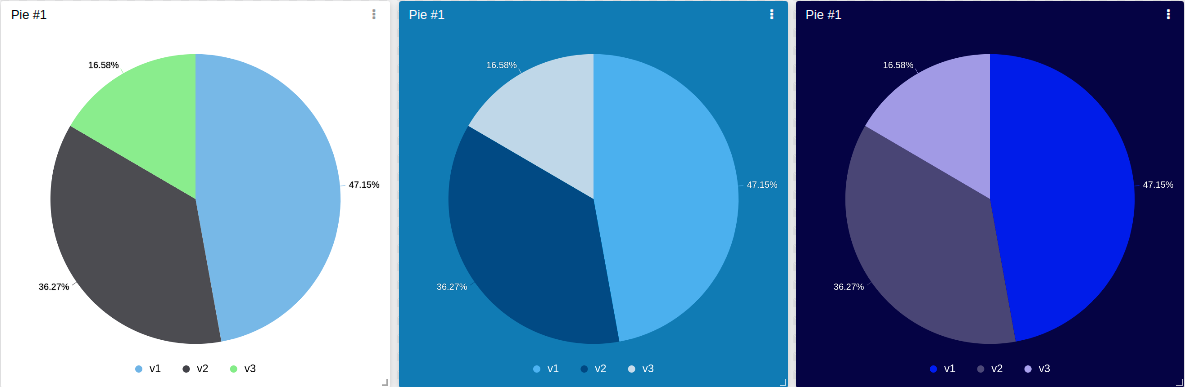

Pie widget examples

This widget also accepts features like metadata that can be set in your variable data.

Creating your own​

To add the Pie widget to your dashboard, choose the Pie widget from the widget list and customize it to your preference. You can edit it using the options located on the right side of the widget.

Data From Field​

This field allows you to set the device and variable that will be used in this widget.
Click on the cog icon to edit specific options for this variable, such as formulas or color. Click on the close icon to remove this variable from the widget's data.

Normal Dashboards​

From the option Data From on the right menu, select one device from your list of devices and the variable that contains the data.

Blueprint Dashboards​

From the option Data From on the right menu, add the Blueprint device and input the name of the variable that contains the information.
When using a Blueprint dashboard, the field Variable will not list variables to be picked because it doesn't know the devices linked to your Blueprint Device.
