TouchTAG LoRaWAN™ Everynet

Overview​

TagoIO integrates with TouchTAG devices through a complete connector to the Everynet back-end server. The system decrypts and parses incoming payloads, extracting all measured variables in real time.

TouchTAG is a disposable, action-driven IoT device — a very low-cost, compact, and lightweight geotag with additional sensor functionality.

TouchTAG — Everynet integration diagram

Add a TouchTAG device to TagoIO​

To add your TouchTAG device to TagoIO:

  1. Go to the Devices section in TagoIO.
  2. Click on "Add Devices".
  3. Select the connector "LoRaWAN Everynet" (select the LoRaWAN Everynet connector).
  4. Search for "TouchTag" and create the device.
    After creating the device, generate an Authorization for it (one per application).
    Generate Authorization

Connector selection and device search in TagoIO

Notes​

  • The connector handles decryption and parsing of the TouchTAG payloads so measured variables are available in real time in TagoIO.
  • When configuring devices, ensure you select the correct connector ("LoRaWAN Everynet") and the correct device type ("TouchTag") so the parsing rules are applied.
  • After creating your device, generate an Authorization for it (one per application).
    Generate Authorization
  • Turn your TouchTAG device on and wait for data to arrive. Each time the device sends data, the parser is executed, extracted data is sent to the bucket, and it becomes available in dashboards.
  • You can create notifications and more advanced scripts as needed.

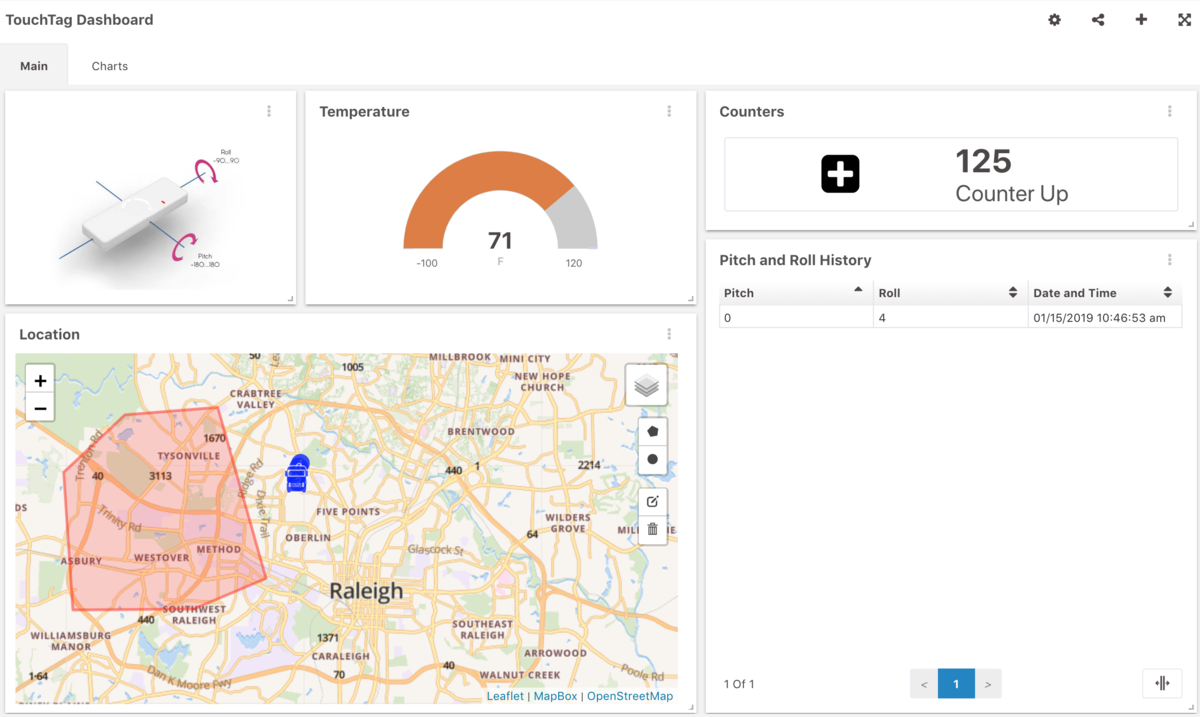

TouchTag Dashboard

References​

  • Refer to the Devices documentation for general instructions on creating and managing devices in TagoIO.
  • Learn how to configure your account for Everynet:
    Everynet configuration guide
