Sens'it with Sigfox

TagoIO is fully integrated with Sens'it v2 and v3 devices. This integration uses the Sigfox backend and parses incoming messages to extract measured variables in real time. All data sent by your device will be available to display in widgets or to process in your Analysis.

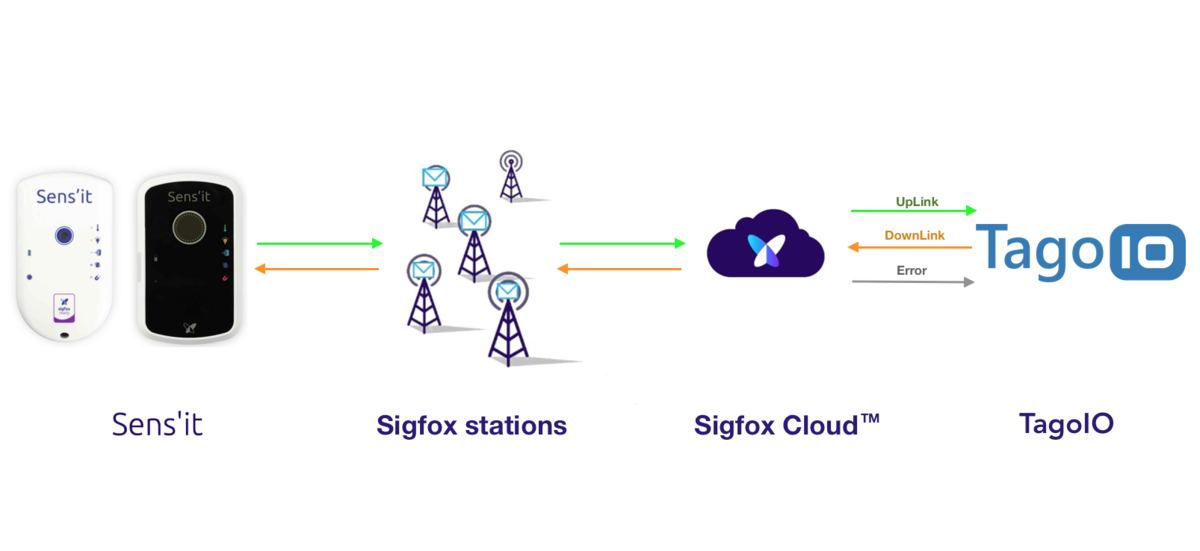

Sens'it + Sigfox + TagoIO Connectivity Diagram

Sens'it + Sigfox + TagoIO Connectivity Diagram

Prerequisites​

  • Sens'it device (v2 or v3)
  • Sigfox developer access (to activate the devkit)
  • TagoIO account with access to add devices

Activate the Sens'it devkit​

  1. Activate your Sens'it as a devkit. As a developer, you must request access to the Sigfox Cloud to use devkit mode.
  2. Request access from the Sigfox Buy website: https://buy.sigfox.com/ and follow their instructions to activate the devkit.
  3. Once the devkit is activated, the device will be able to send data through the Sigfox network for testing.

Add the device to TagoIO​

  1. In TagoIO, go to Devices (see Devices for the Devices section).
  2. Click on "Add Devices".
  3. Filter the network by "Sigfox" and choose your Sens'it device from the list (select v2 or v3 accordingly).
  4. After adding the device, incoming data will be parsed by TagoIO and become available for widgets and Analysis.

TagoIO — Select the device type

TagoIO — Select the device type (use the network filter to find Sigfox devices)

Dashboard Setup​

After adding the device, click on the newly created dashboard in the left menu and associate it with your Sens'it device. Turn the device on; data will arrive automatically into the bucket and be displayed in widgets.

Data Buckets​

Every time the device sends data, the parser is executed, the extracted data is sent to a bucket, and it becomes ready for display in dashboards or further analysis.

Custom Parsing (v2)​

If you are using Sens'it v2, you may want to edit the parse function in your device to extract variables from more modes. Check the complete payload documentation: Payload Parser and the Sigfox developer guide for detailed information.

Advanced Features​

You can create notifications and advanced scripts as needed:

Notes​

  • The integration supports both Sens'it v2 and v3 devices.
  • Ensure your Sigfox devkit is properly activated before registering the device in TagoIO.
  • For any specific Sigfox backend configuration or Sigfox Cloud settings, consult Sigfox documentation or the Sigfox Cloud console: Sigfox.
