Image Widget

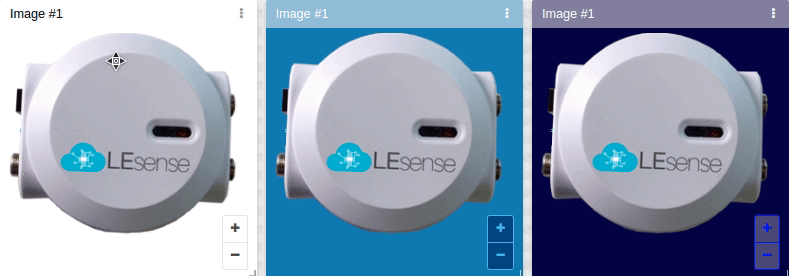

The Image widget provides the ability to present custom images in your dashboard. You can use it to display a company or customer logo, or any image that helps users better visualize your application.
1. Image Behavior
Image behavior defines where the image URL comes from. There are three types of image behavior: static, conditional, and dynamic.
You can use TagoIO's file system to store the image and cache the public URL (TagoIO Admin: File System).
1.1 Static
It displays the image from a static URL.

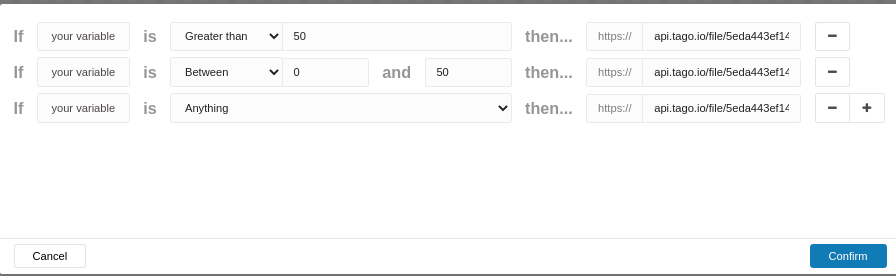

1.2 Conditional
Creates conditions, where each condition will have an image URL associated with it, and if the variable linked in the Data From field satisfies this condition, this image will be displayed.
1.3 Dynamic
This image URL comes from the variable data.
2. 'Data From' Field
The conditional and dynamic behavior has a Data From field to set the device and variable that will be used.
This field is dependent on the type of dashboard you are using; the difference is explained below.
2.1 'Data From' for Normal Dashboards

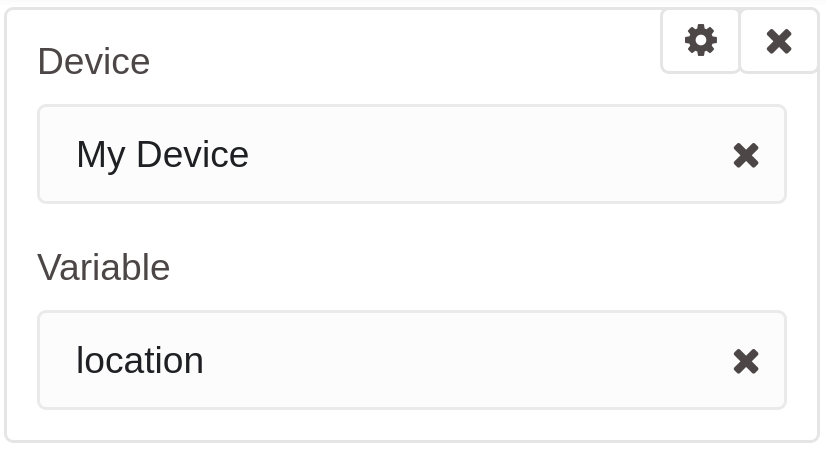

From the option Data From on the right menu, select one device from your list of devices and the variable that contains the data.
2.2 'Data From' for Blueprint Dashboards
From the option Data From on the right menu, add the Blueprint device and input the name of the variable that contains the information.
When using a Blueprint dashboard, the field Variable will not list variables to be picked because it doesn't know the devices linked to your Blueprint Device.
